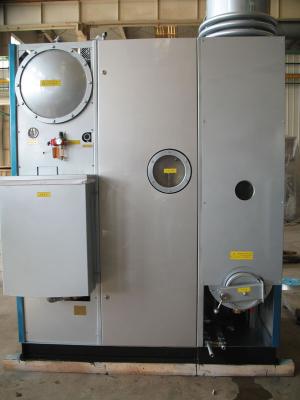

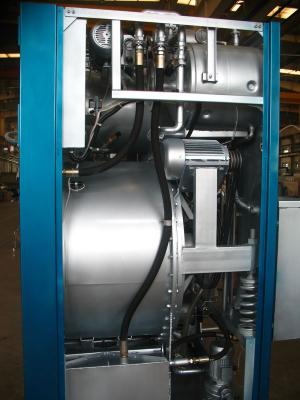

Based on years of culminating experience and techniques, we developed this multifunctional hydrocarbon dry cleaning machine which integrates washing, extracting, drying and distillation in a vacuum space.This easy-to-use commercial cleaning equipment is highly credited for its high-speed extraction of solvents and quick drying even under lower temperatures which also means less energy consumption.
Features of the Hydrocarbon Dry Cleaning Machine
1. Washing Circle: integrating washing, extracting, drying and distillation all together;
2. Multifunctional Computer Control: consisting of a large LCD color screen, user-friendly interface, self-checking malfunction device, and adjustable program settings depending on the type of textiles being washed;
3. Safe Working System: ensures safe operation as all washing, extracting, drying and distillation procedures are done in a vacuum condition;
4. Closed System: vacuum pump ensures industrial dry cleaning machine is fully closed;
5. Soft Mount Structure: suspension springs make it easy to attach any maintenance device or accessories to the machine;
6. Environmentally-Friendly Hydrocarbon Solvent: solvent is colorless, non-toxic, odorless, and eco-friendly;
7. Digital Frequency Conversion Technology: for stepless speed adjustment while washing, extracting and drying;
8. Gentle Cleaning: washing in a vacuum condition ensures that textiles are clean and free of residual air pollutants. The laundry equipment works especially well for furs, keeping them soft, silky and intact;
9. Efficient Filtration: solvent will be sprayed into a high-consistency filtration net for uniform filtering while the machine is running;
10. Special Cooling Reclaiming System: efficiently recycles solvents and keeps them under refrigeration status, helping reduce energy consumption;
11. Efficient Distillation System: removes neutral fats, mineral oils and pigments and ensures nothing is absorbed by used solvents, allowing the hydrocarbon solvent to remain pure for longer;
12. Solvent Tank: single or double solvent tank available.
Technical Specification of the Hydrocarbon Dry Cleaning MachineMODEL NUMBER | Unit | |||
CAPACITY | ||||
Dry Weight Capacity | kg/lbs | 10/22 | 15/33 | 20/44 |
Drum Diameter | mm | 850 | 950 | 1200 |
Drum Depth | mm | 300 | 432 | 390 |
Loading Volume | dm3 | 170 | 306 | 441 |
Under-Tank Volume | dm3 | 132 | 144 | 280 |
Washing Speed | rpm | 42 | 40 | 32 |
High Extract Speed | rpm | 930 | 900 | 800 |
NYLON CENTRIFUGAL FILTER | ||||
Filter Volume | dm3 | 30 | 55 | 69 |
Filtration Capacity @1 bar | L/h | 4000 | 6000 | 7000 |
Filtration Area | m2 | 2 | 4 | 5.5 |
ELECTRICITY & POWER | ||||
Power Supply | V/P/Hz | 380~415V, 3Phase, 50Hz | ||
Main Motor | kW | 2.2 | 3.0 | 5.5 |
Drying Motor | kW | 1.5 | 1.5 | 2.2 |
Filtering Motor | kW | 1.1 | 1.1 | 1.5 |
Vacuum Pump Motor | kW | 0.75 | 0.75 | 1.5 |
Solvent Pump | kW | 1.1 | 1.5 | 1.5 |
Maximum Load | kW | 6.65 | 7.85 | 12.2 |
Cross Section Area of Circuit (copper) | mm2 | 5x4 | 5x4 | 5x6 |
Current Capacity of Circuit | Amps | 35 | 35 | 50 |
Actual Current | Amps | 14 | 16 | 20 |
CONNECTIONS | ||||
Compressed Air Pressure | MPa | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 |
Compressed Air Inlet | mm | ф6 | ф6 | ф6 |
Water Pressure | MPa | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
Water Inlet, Outlet | inch, mm | 1/2", DN15mm | 1/2", DN15mm | 1/2", DN15mm |
Steam Pressure | MPa | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 |
Steam Inlet, Outlet | inch, mm | 1/2", DN15mm | 1/2", DN15mm | 1/2", DN15mm |
CONSUMPTION | ||||
Electricity, at 40 minutes of circulation | kW | 1.0 | 1.6 | 2.9 |
Water, in case of the temp. of the water reaching 18℃ | L | 85.0 | 90.0 | 100.0 |
Steam, at 150℃/0.5Mpa | kg | 3.8 | 4.0 | 6.5 |
Compressed Air per cycle | L | 4.0 | 4.0 | 4.0 |
DIMENSION | ||||
Width/Depth/Height | mm | 1550/1350/2260 | 1690/1450/2350 | 2250/1650/2150 |
Net Weight | kg | 650 | 1080 | 1800 |
